Version: DPX 4.15

NDMP Restore

This mode restores data backed up from NDMP nodes.

Creating an NDMP Restore Job​

  1. Go to Job Manager.

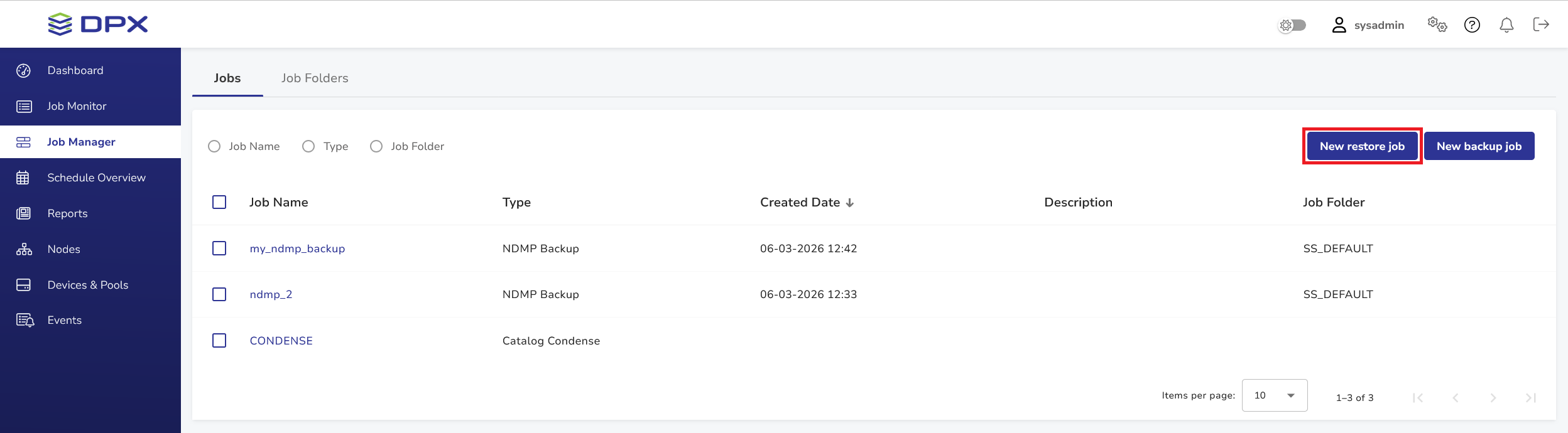

  2. Click New Restore Job to open the New Restore dialog window.

[image expected here]

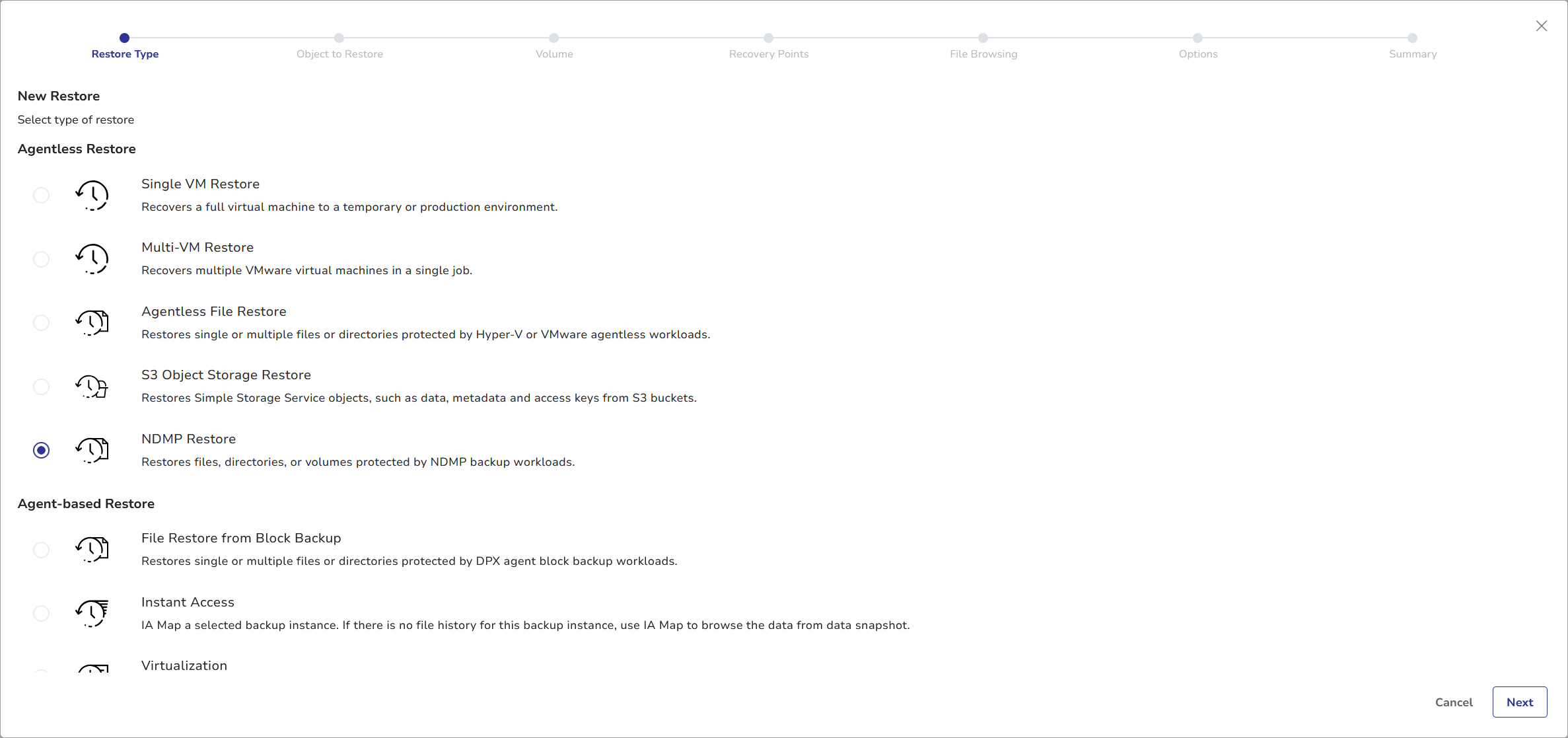

  1. Select NDMP Restore and click Next.

[image expected here]

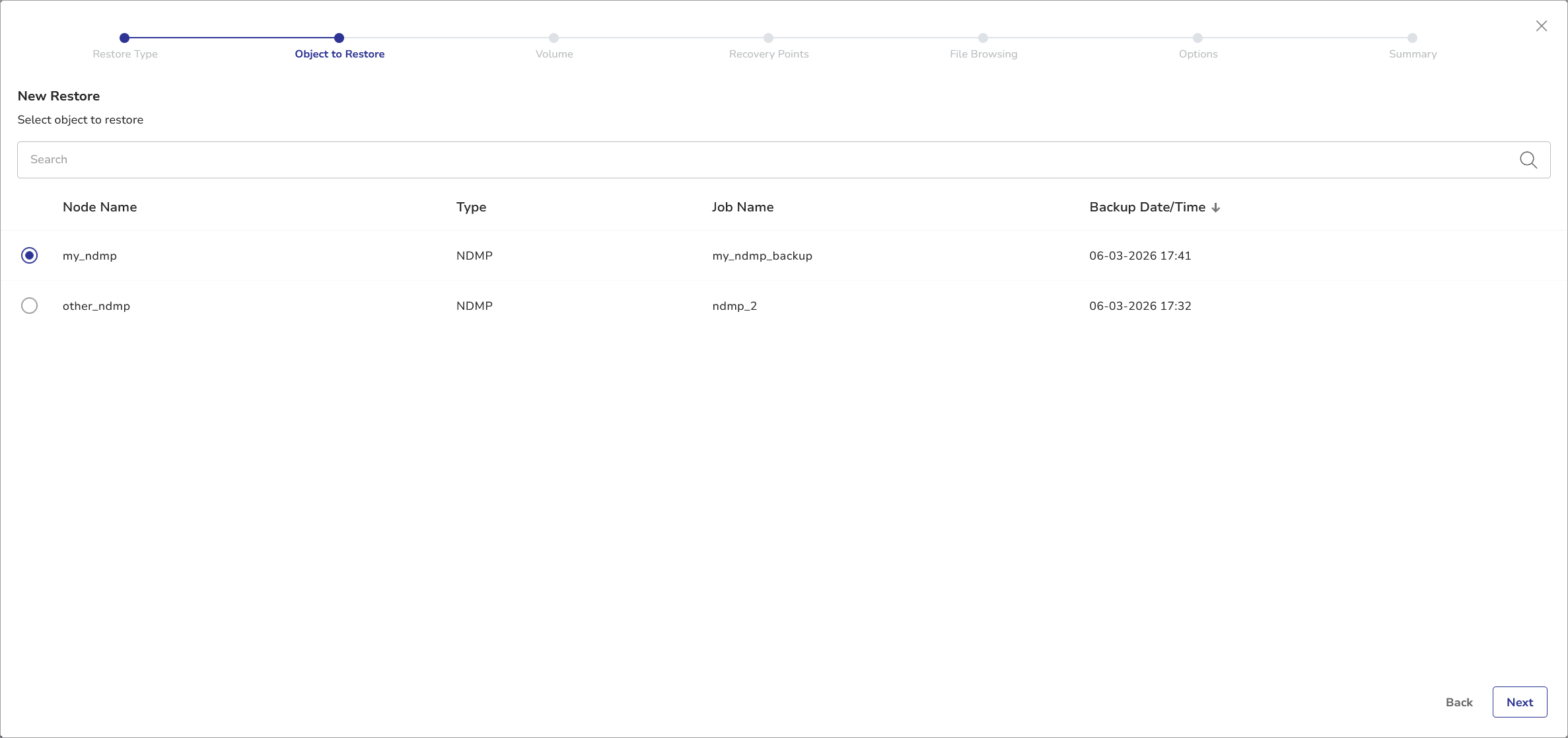

  1. The Object to Restore view shows all NDMP backups. Sort the buckets by Node Name, Job Name, or Backup Date/Time.
    Click Next.

[image expected here]

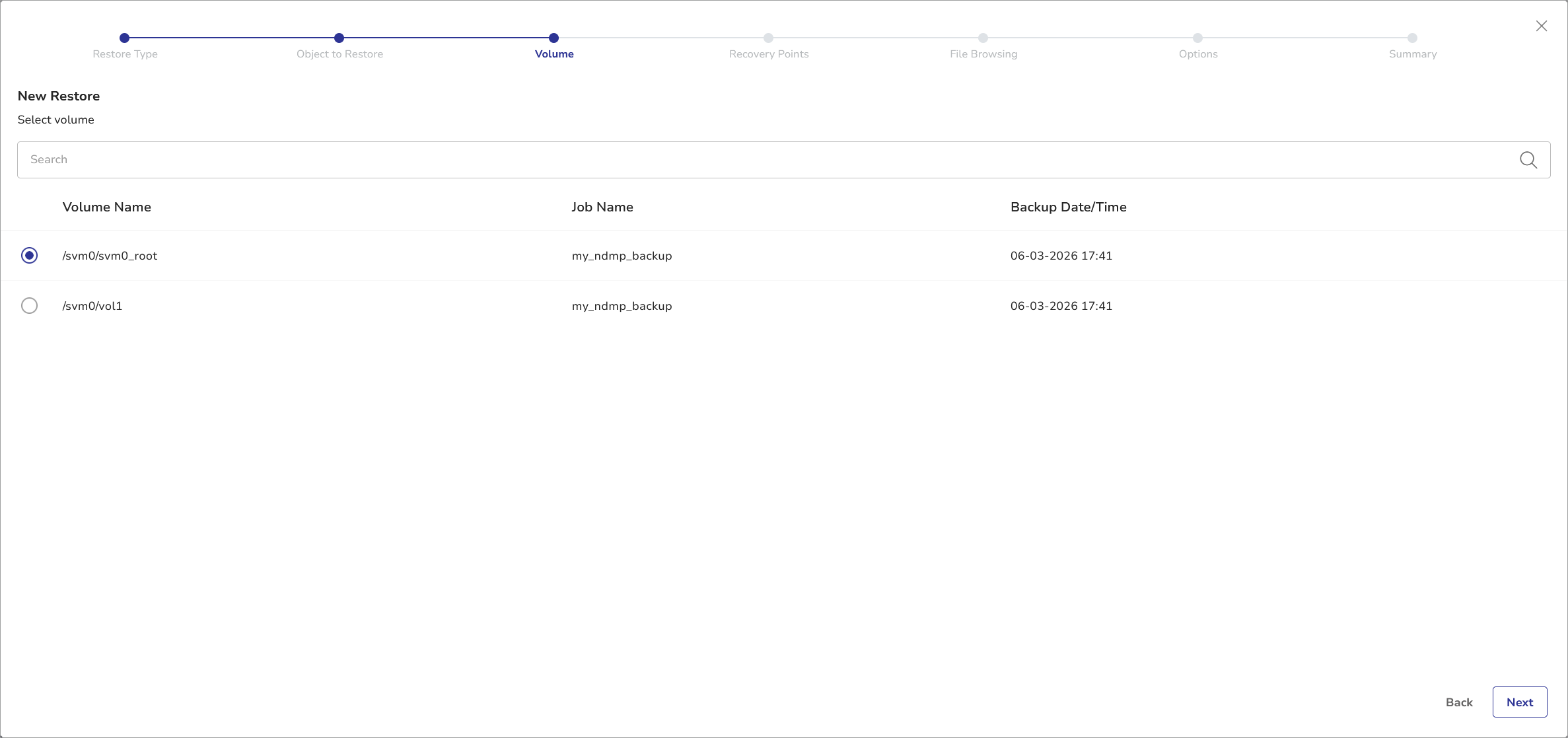

  1. In the Volume step, select the volume you want to restore. Only one volume per restore job definition is allowed.
    Click Next.

[image expected here]

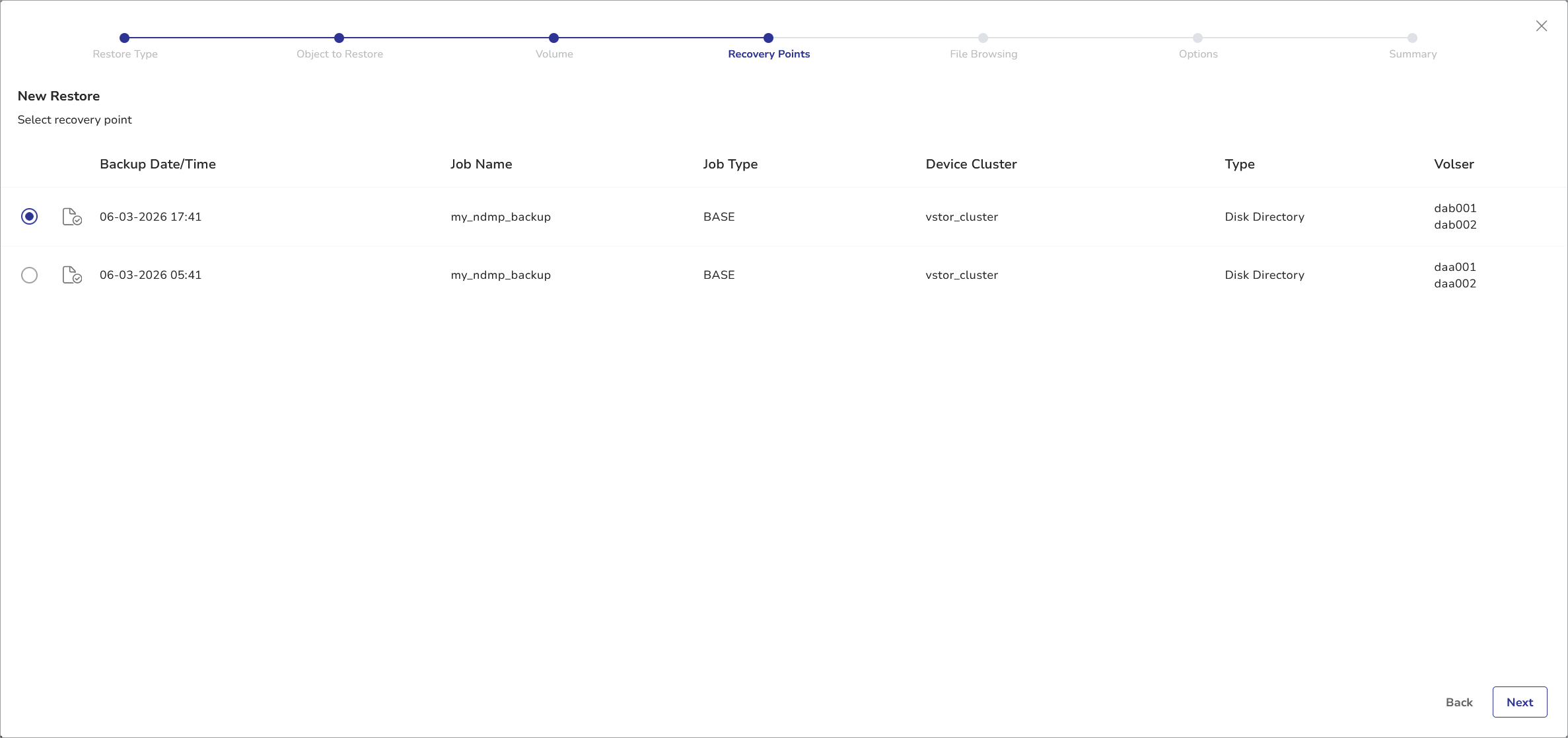

  1. In the Recovery Points step, select the recovery point you want to restore from.
    Click Next.

[image expected here]

  1. In the File Browsing step, select either the entire Volume or specific files.
    If you select Files, the file manager will appear, allowing you to select specific files for restore; click the volume label in the left-hand pane to display items within the volume.
    Select all desired files or directories and click Next.
[image expected here]

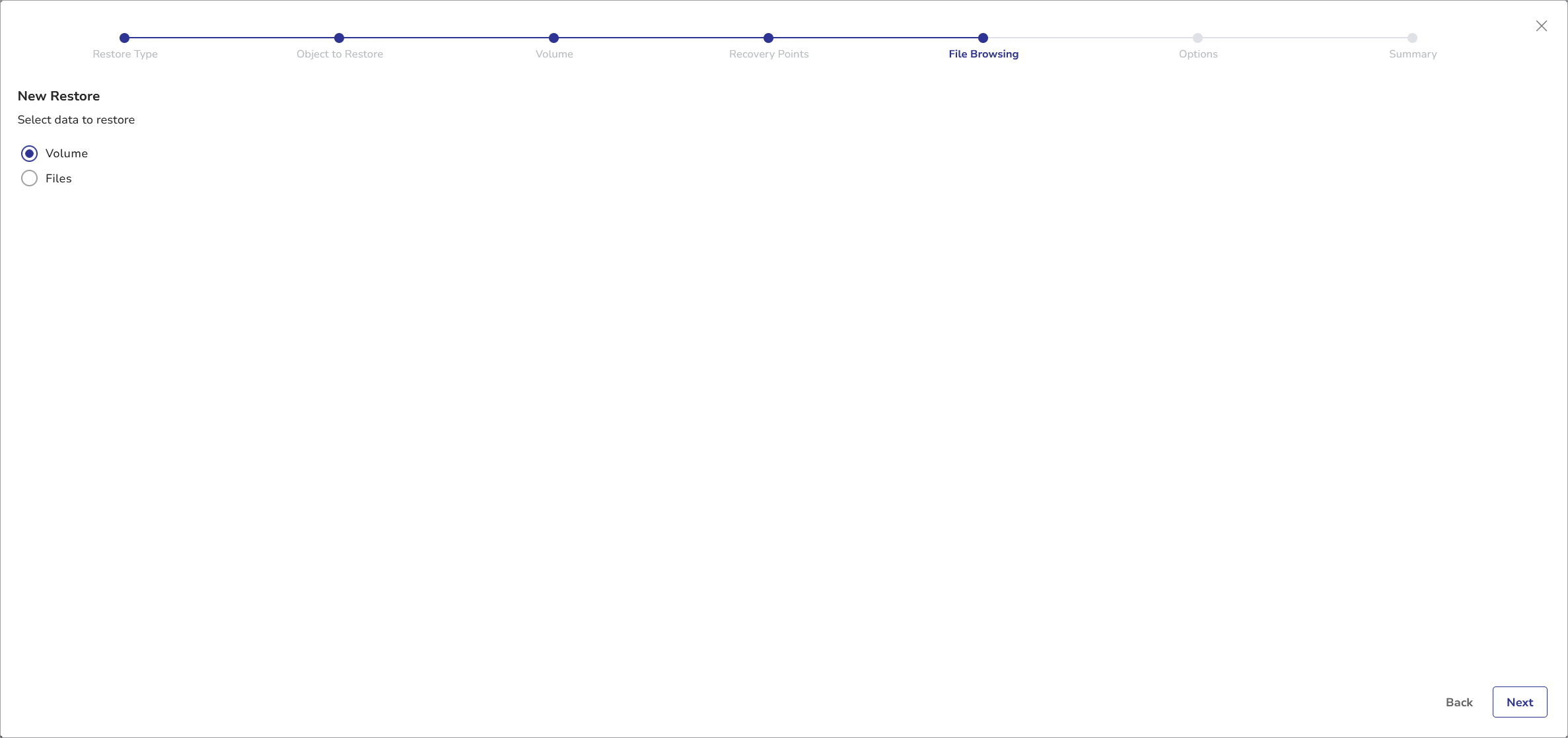

File Browsing – volume selected

[image expected here]

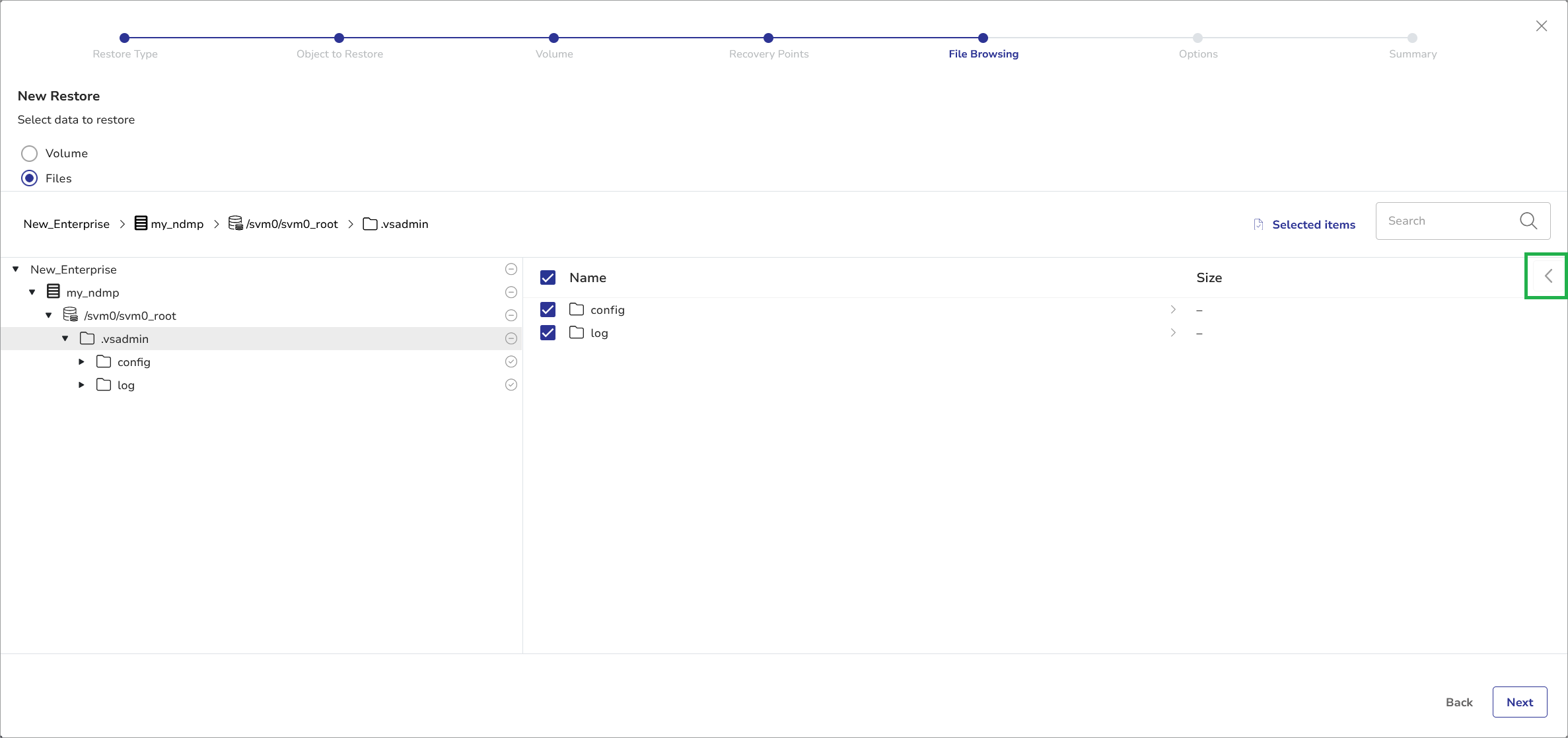

File Browsing – files and folders selected

Tip.

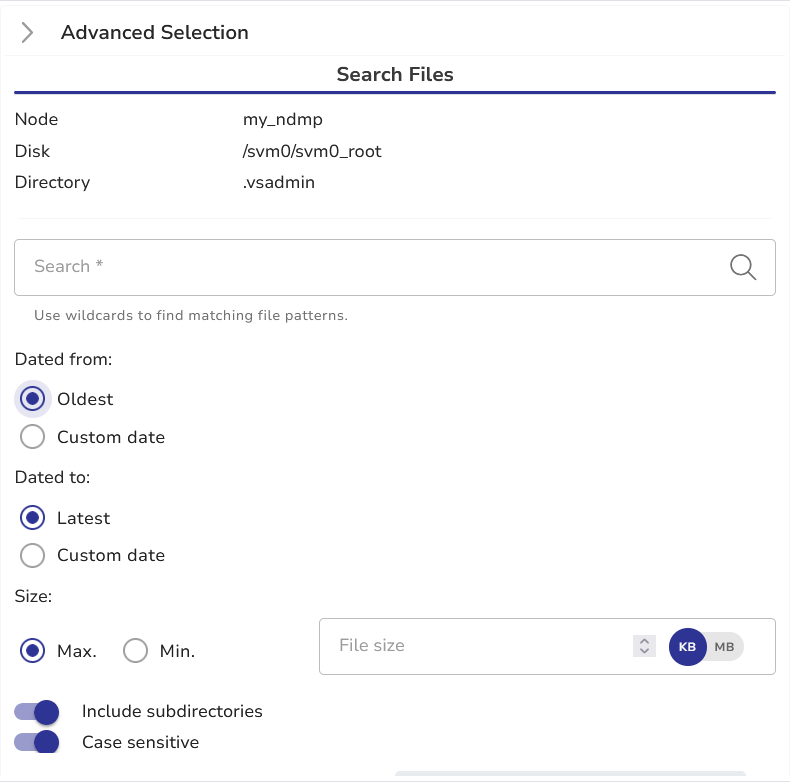

To use Advanced Search, click the arrow to the right to open the Advanced Search slider.

[image expected here]

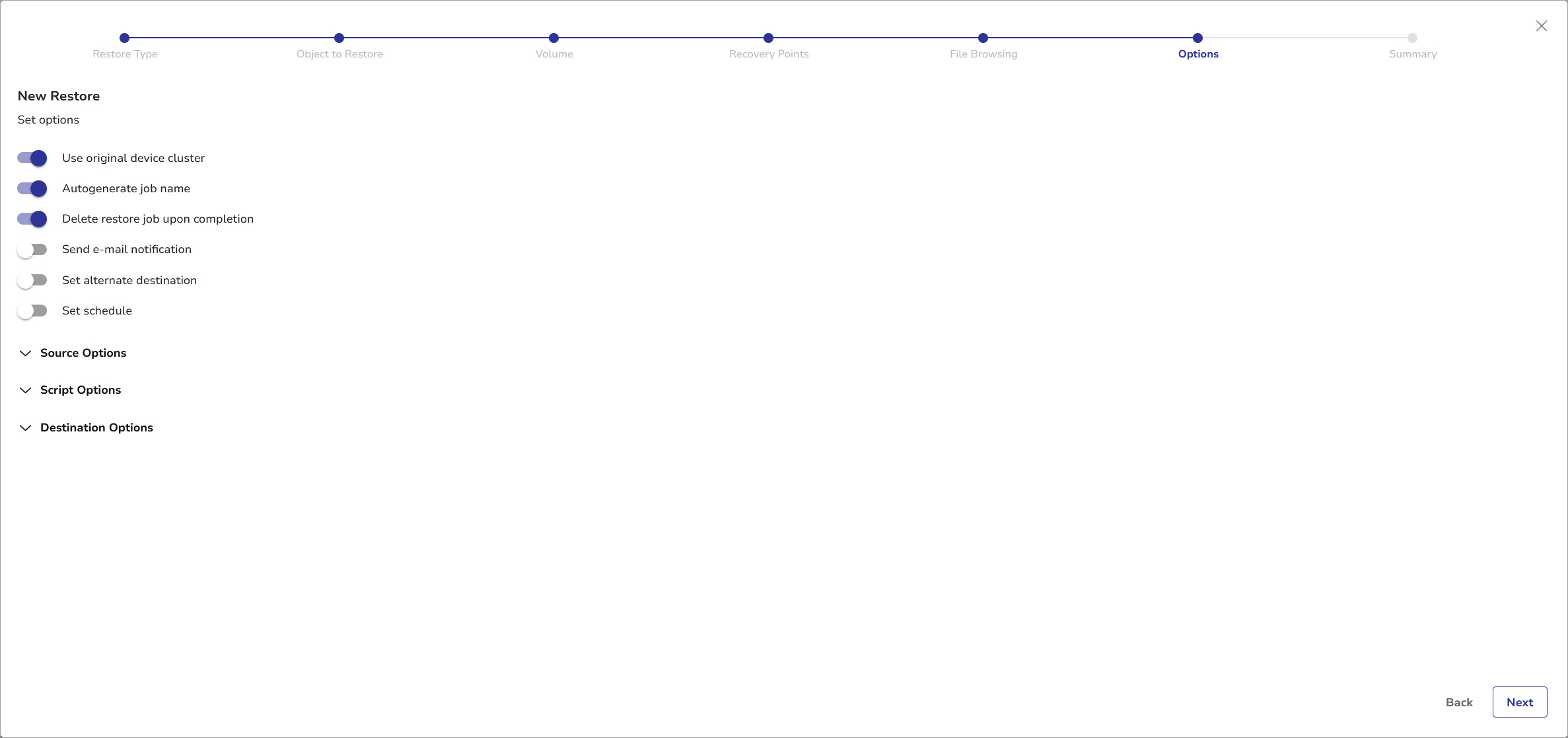

  1. In the Options step, you can specify the job options (see below), or leave defaults.

[image expected here]

Basic Job Options​

Use original device cluster​

Toggle onThe data will be restored to its original location.
Toggle offSpecify target device cluster.

Autogenerate job name​

Enabled by default, this option automatically generates a job name based on the Unix timestamp of the backup job.

Delete restore job upon completion​

Toggle onThe restore job defined in this process will be deleted upon successful completion. If the job fails, it will not be deleted.
Toggle offThe restore job will be saved and will be accessible later in Job Manager.

  1. Optionally, you can specify other job options (see Advanced Job Options). If you wish to continue with default options, click Next.

  2. Verify the job definition summary in the Summary Step, then click Save.

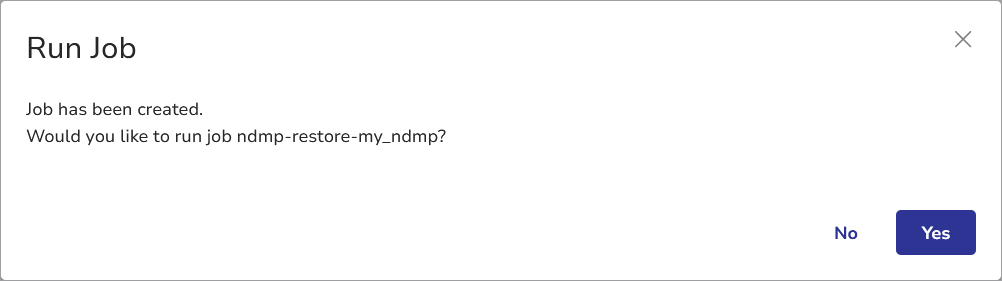

    The Run Job prompt will be shown.

[image expected here]

  1. Click Yes to run the job immediately or No if you want to run it later from the Job Manager.
